INLINE OIL CONDITION MONITOR

FluidInspectIR® PLUS

Name: FluidInspectIR® PLUS
Brand: Spectrolytic

Single-point inline oil condition monitor. Plug-and-play installation on individual assets via bypass line. Delivers continuous real-time MIR spectroscopy and viscosity analysis — configurable for mineral oils, PAO, PAG, Phosphate Ester, Polyolester and water-based emulsions. No sampling. No lab delays. Data in the same format and units as standard oil analysis laboratory reports.

⬇ Download Datasheet

Technology

MIR & Viscosity

Supply voltage

24V, 110V or 220V

Weight

6 kg

Accuracy

±5% — lab-equivalent

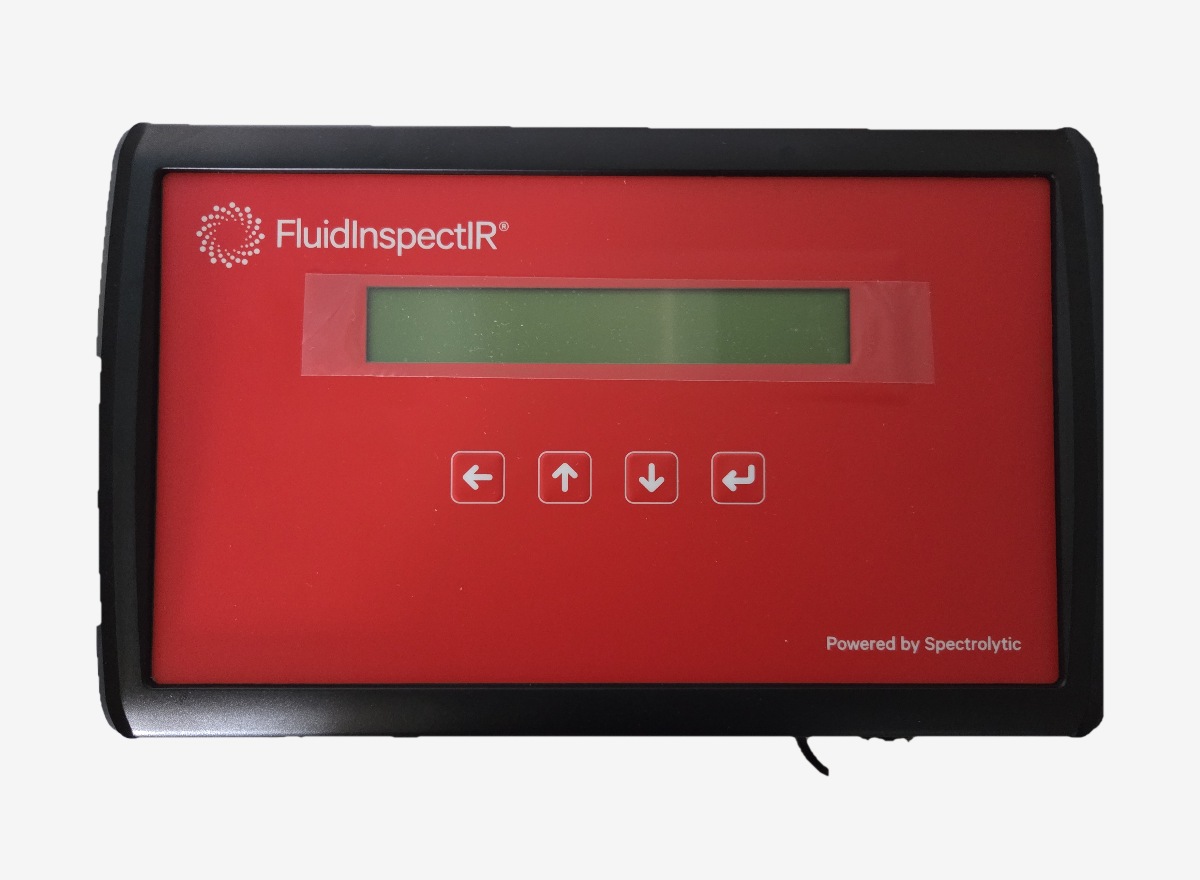

FluidInspectIR® PLUS inline oil condition monitor

Technical specification

Lab-equivalent accuracy. Continuous 24/7 operation.

The PLUS installs directly into the oil circuit bypass line via pump or electric valve. Powered from 24V DC or 100–240V AC, it delivers continuous MIR and viscosity measurements with all results in standard laboratory units.

Technology

MIR & Viscosity

Optional viscosity sensor KV40/100°C

Communication

MODBUS (RTU, TCP), LTE

Profibus available on request; Azure & AWS cloud integration

Interfaces

Ethernet, RS485

Parameters

Application specific

Correlates to ASTM / DIN

Supply voltage

24V DC or 100–240V AC

Max power

120 W

Dimensions

322 × 232 × 137 mm

6 kg

Fluid connection

G1/8 female, 6 mm pipe

Hylok fitting; pump or electric valve integrated

Measurement parameters

Eight key indicators of oil health

The PLUS monitors the parameters that matter most for predictive maintenance and condition-based oil change decisions — application-configured prior to delivery.

💧

Water / Moisture

Early detection of water ingress before emulsification or corrosion damage occurs.

⚖

Viscosity

Continuous kinematic viscosity measurement detects thinning, thickening, and shear degradation.

⚡

Oxidation

Quantifies oxidative degradation of the base oil, a primary indicator of remaining useful life.

🧪

TAN / TBN

Total Acid / Base Number monitoring for engine and industrial lubricant degradation assessment.

📄

Sulphation

Detects sulphation byproducts in engine oils, particularly relevant for diesel and gas engine applications.

⬤

Soot / Carbon

Measures soot loading in diesel and gas engine lubricants to prevent accelerated wear and filter blockage.

⛽

Fuel Dilution

Detects fuel contamination of engine oil — a leading indicator of injector faults or piston ring wear.

🛡

Antioxidants

Tracks depletion of antioxidant additive packages, enabling condition-based oil change decisions.

Applications

Proven across critical industrial assets

The PLUS is deployed on a wide range of rotating and reciprocating machinery where continuous oil condition data reduces unplanned downtime and optimises maintenance intervals.

⚙

Gas engines

🔌

Turbomachinery

⚙

Hydraulic systems

⚓

Marine

🚗

Diesel engines

⚙

Gear systems
